Wide Range of Metal Fabrication Services. And That’s No Lie.

There is nothing more important to us than making sure we deliver the highest quality product using the best processes available. Setting the standard as a leading manufacturer of precision metal fabrications and machined components is what we’re all about.

Our extensive in-house capabilities and state-of-the-art BIM technology, enables most all operations to be executed “in house,” providing you with complete control over projects from inception through delivery.

Waukegan Steel offers you our experience, expertise and an unsurpassable level of service. Whether your project is for a historic landmark, a prestigious new development or your own business or home project, we extend the same delicate care and professionalism in all our endeavors.

Take a look around our website and read about our steel fabrication and other metalwork services, then contact us to discuss what you have in mind.

Machining

Screen Shot 2016-05-12 at 3.43.33 PMBOXX Workstation

When configuring an APEXX 2 compact workstation, you have the option to safely overclock the CPU. For single-threaded applications like CAD design and 3D modeling, this can have a significant impact on your workflow and productivity. Working with our partners at Intel, combined with our own rigorous internal testing, ensures rock solid reliability and performance on each overclocked APEXX workstation. This translates to measureable ROI for your business.

Bevel Stations

While some manufacturers consider beveling a special feature requiring the support of an engineering team, ALLtra plasma and oxy-fuel beveling systems are a focus of our core competency. ALLtra Intelligent Design has developed beveling systems producing the highest quality single and combination edge bevels while minimizing the complexity and maintenance of key features including Automatic Rotation, Automatic Height Control, Bevel Angles to 60°, “Off the Plate” Sense, and Knife Edge or CompoundBevels.



Plasma Marking

While some manufacturers consider beveling a special feature that requires a team of engineers to support, ALLtra plasma and oxy-fuel beveling systems are a focus of our core competency. ALLtra Intelligent Design has developed beveling systems to produce the highest quality single and combination edge bevels while minimizing the complexity and maintenance of these features.

PLASMA BEVEL STATIONS
Key features of our plasma bevel stations include:

Screen Shot 2016-05-12 at 4.04.30 PMHigh Speed Positioning
Automatic Height Control & Crash Protection
Servo Control & Encoder Positioning
Automatic Contour Bevel Station
Single Axis Bevel Station
Robotic Positioning
Breakaway Crash Without Need for Re-Alignment
ALLtra Plasma Bevel Stations

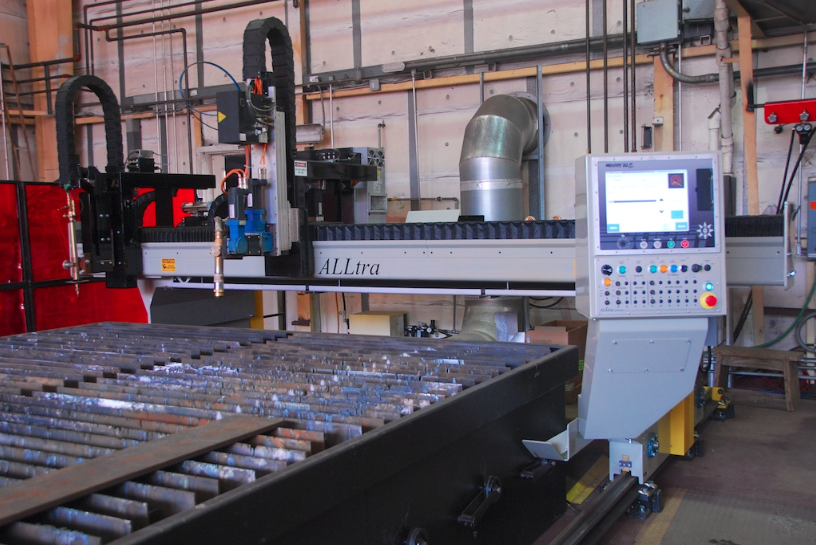

Heavy Duty Industrial Cutting Machine

The PG-14 Series Gantry Cutting Machines provide the ultimate solution to a wide variety of cutting widths and lengths. Some believe that smaller gantries with lighter workloads can be made from light materials and cheaper components. At ALLtra, our 4’ wide machines are built to the same standards as our much larger machines. The PG-14 Series provides solutions for cutting and marking on cutting widths from 4’ to 14’.

Quality Construction
Even at a glance, the quality and durability of this industrial grade machine is evident. With 1/2″ thick reinforced carbon steel beam machined to our tolerances at our facility, the PG-14 includes features that competitors offer only as expensive options. Covered linear ways, gantry heat and splatter shield and custom CNC and power-track positions all are part of the comprehensive system delivery that includes ‘ground up’ installation, all with the best service reputation in the industry.

Key Machine Features
ALLtra CNC
Automatic Torch Spacing
Cutting Widths up to 14′ (PG-14)
Dual Side Drive with AC Brushless Servos and Precision Planetary Gearboxes
Large Beam and Protected Dual Linear Ways Ensure Accuracy and Durability
Heavy-Duty Machined Rails with Tongue-in-Groove Assembly for Precise Alignment
Optional ‘Tucked Rail’ for Reduced Floor Space and Improved Loading/Unloading
